FB-02 · Twin-tank mobile · 7.5–22 kW

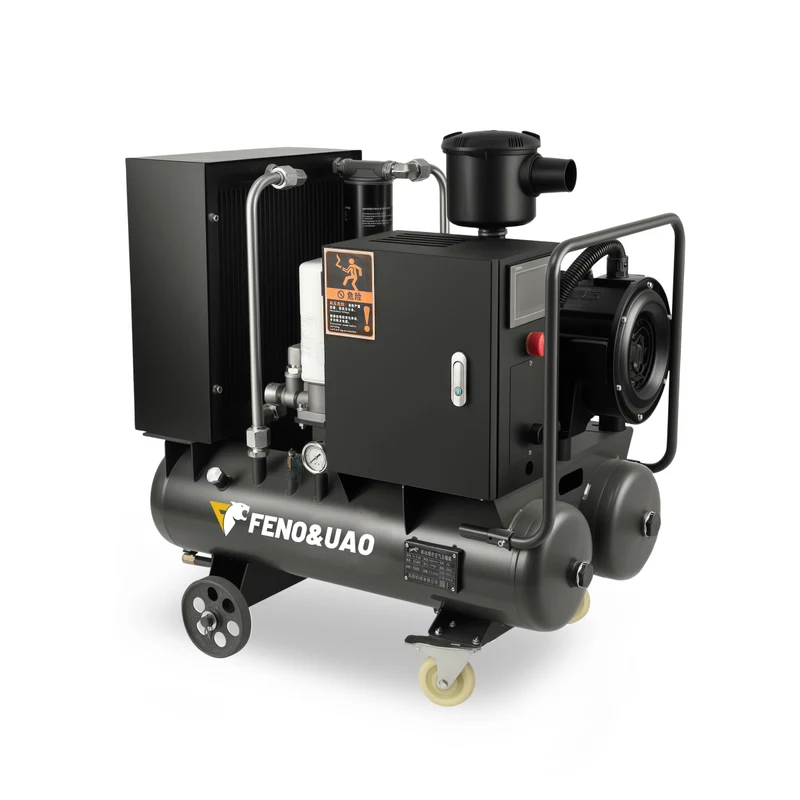

Twin-tank mobile screw compressor
A mobile twin-tank series covering 7.5–22 kW and 1.1–3.0 m³/min.
Compare the catalog operating points below. We confirm the final configuration for your site in the quotation.
Verified catalog specifications
| Model | Power | Voltage | Pressure | Air flow | Tank | |
|---|---|---|---|---|---|---|
| FB-02-001 | 7.5 kW | 220 V | 10 bar 1 MPa | 1.1 m³/min | 90 L | Request this configuration → |
| FB-02-002 | 7.5 kW | 380 V | 10 bar 1 MPa | 1.1 m³/min | 90 L | Request this configuration → |
| FB-02-003 | 11 kW | 380 V | 12 bar 1.2 MPa | 1.6 m³/min | 90 L | Request this configuration → |
| FB-02-004 | 15 kW | 380 V | 12 bar 1.2 MPa | 2.2 m³/min | 90 L | Request this configuration → |
| FB-02-005 | 22 kW | 380 V | 12 bar 1.2 MPa | 3 m³/min | 140 L | Request this configuration → |
