FB-01 · Single-tank mobile · 3–9 kW

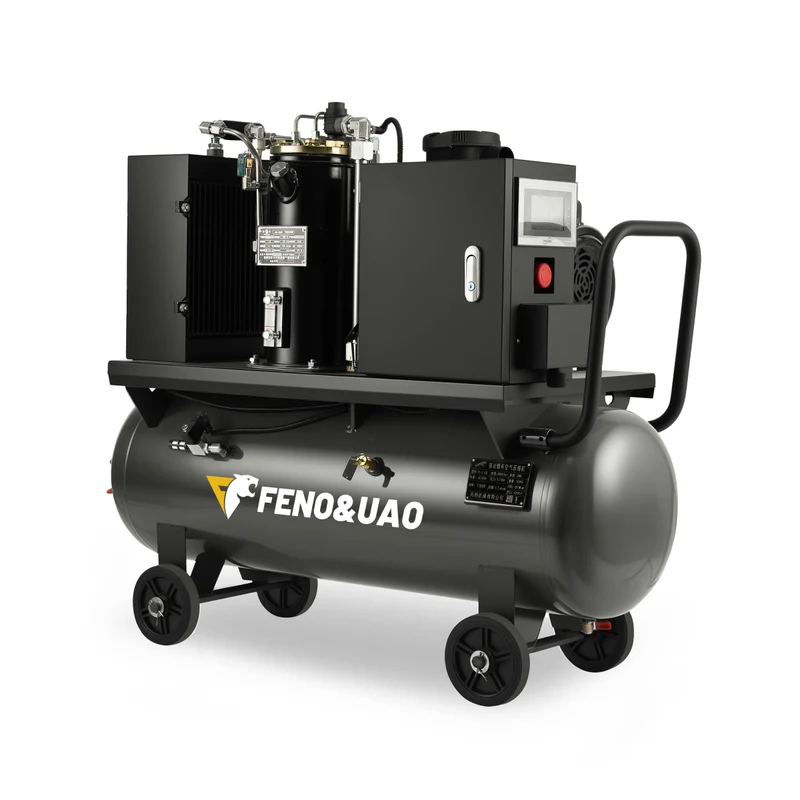

Single-tank mobile screw compressor
The lowest-power starting series: 3–9 kW with a 160 L single tank and 220/380 V catalog options.
Compare the catalog operating points below. We confirm the final configuration for your site in the quotation.
Verified catalog specifications
| Model | Power | Voltage | Pressure | Air flow | Tank | |
|---|---|---|---|---|---|---|
| FB-01-001 | 3 kW | 220 V | 10 bar 1 MPa | 0.314 m³/min | 160 L | Request this configuration → |
| FB-01-002 | 4 kW | 220 V | 10 bar 1 MPa | 0.468 m³/min | 160 L | Request this configuration → |
| FB-01-003 | 5.5 kW | 220 V | 10 bar 1 MPa | 0.67 m³/min | 160 L | Request this configuration → |
| FB-01-004 | 7.5 kW | 220 V | 10 bar 1 MPa | 1.1 m³/min | 160 L | Request this configuration → |
| FB-01-005 | 7.5 kW | 380 V | 10 bar 1 MPa | 1.1 m³/min | 160 L | Request this configuration → |
| FB-01-006 | 9 kW | 380 V | 12 bar 1.2 MPa | 1.1 m³/min | 160 L | Request this configuration → |
