FB-12 · Industrial cabinet · 7.5–37 kW

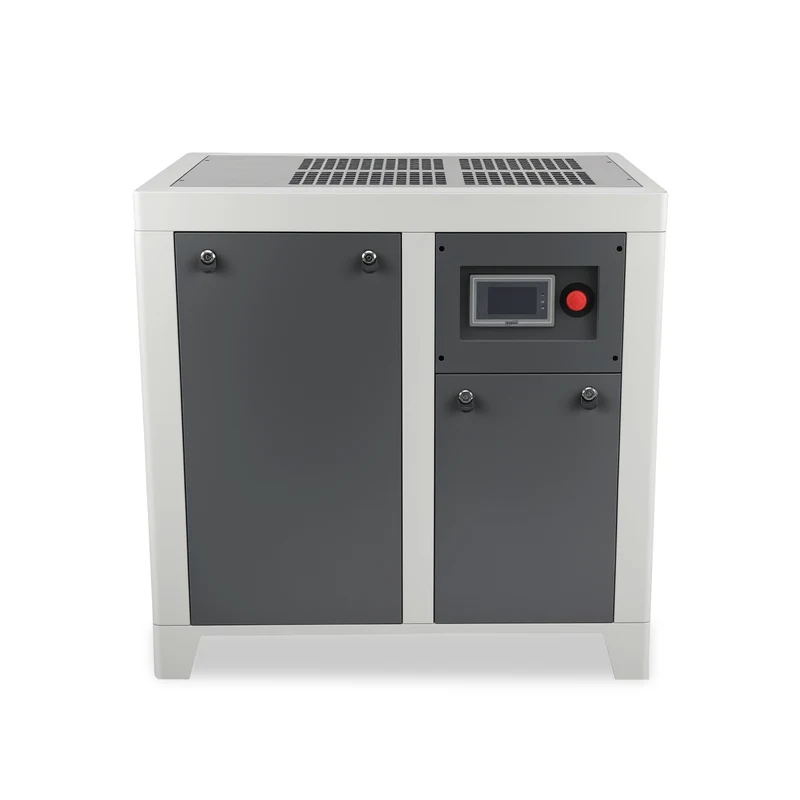

Permanent magnet variable-speed screw compressor
A tank-free cabinet series at 380 V and 0.8 MPa, covering 7.5–37 kW and up to 6.2 m³/min.
Compare the catalog operating points below. We confirm the final configuration for your site in the quotation.
Verified catalog specifications
| Model | Power | Voltage | Pressure | Air flow | Tank | |
|---|---|---|---|---|---|---|
| FB-12-001 | 7.5 kW | 380 V | 8 bar 0.8 MPa | 1.1 m³/min | — | Request this configuration → |
| FB-12-002 | 15 kW | 380 V | 8 bar 0.8 MPa | 2.4 m³/min | — | Request this configuration → |
| FB-12-003 | 22 kW | 380 V | 8 bar 0.8 MPa | 3.5 m³/min | — | Request this configuration → |
| FB-12-004 | 37 kW | 380 V | 8 bar 0.8 MPa | 6.2 m³/min | — | Request this configuration → |
